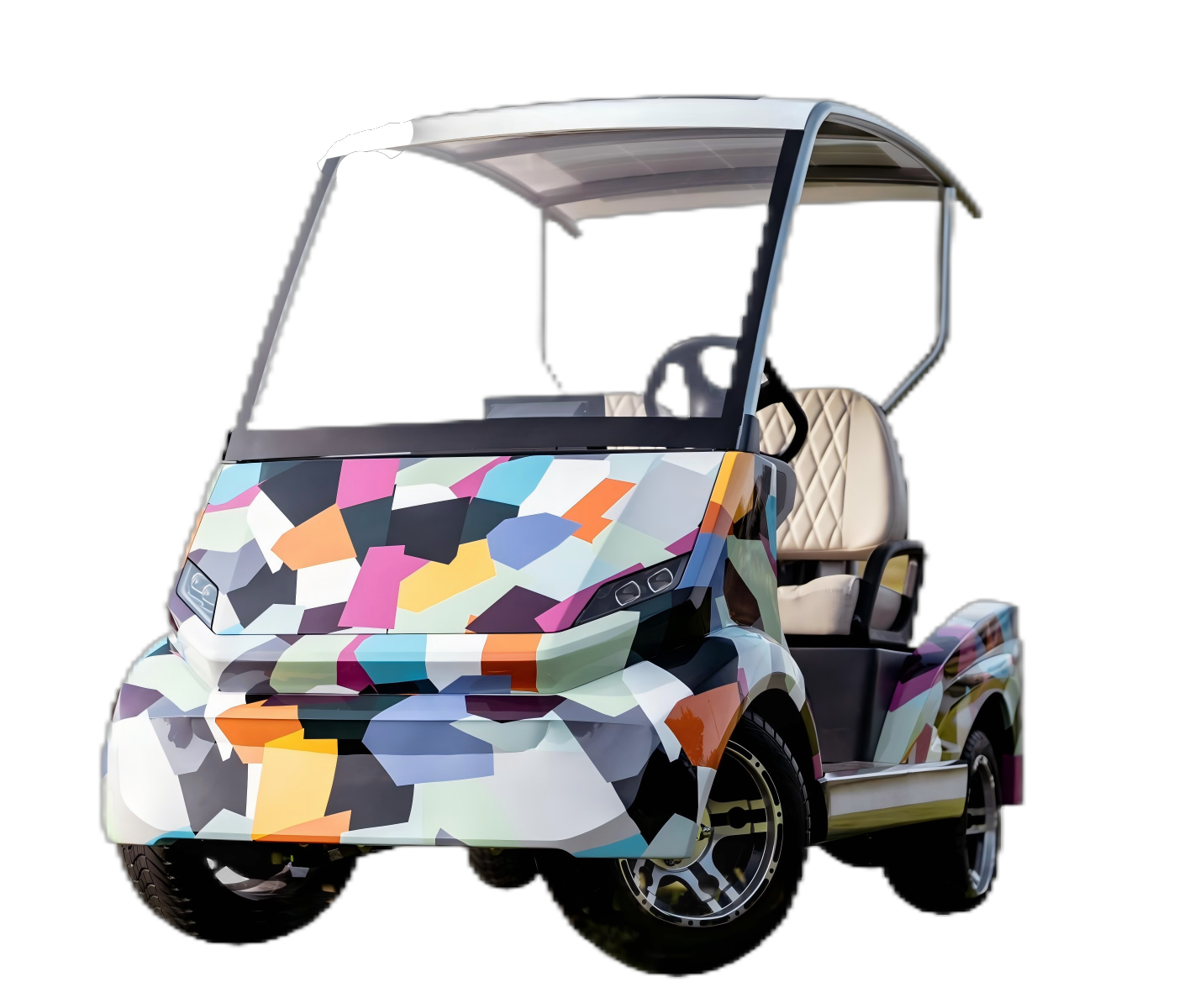

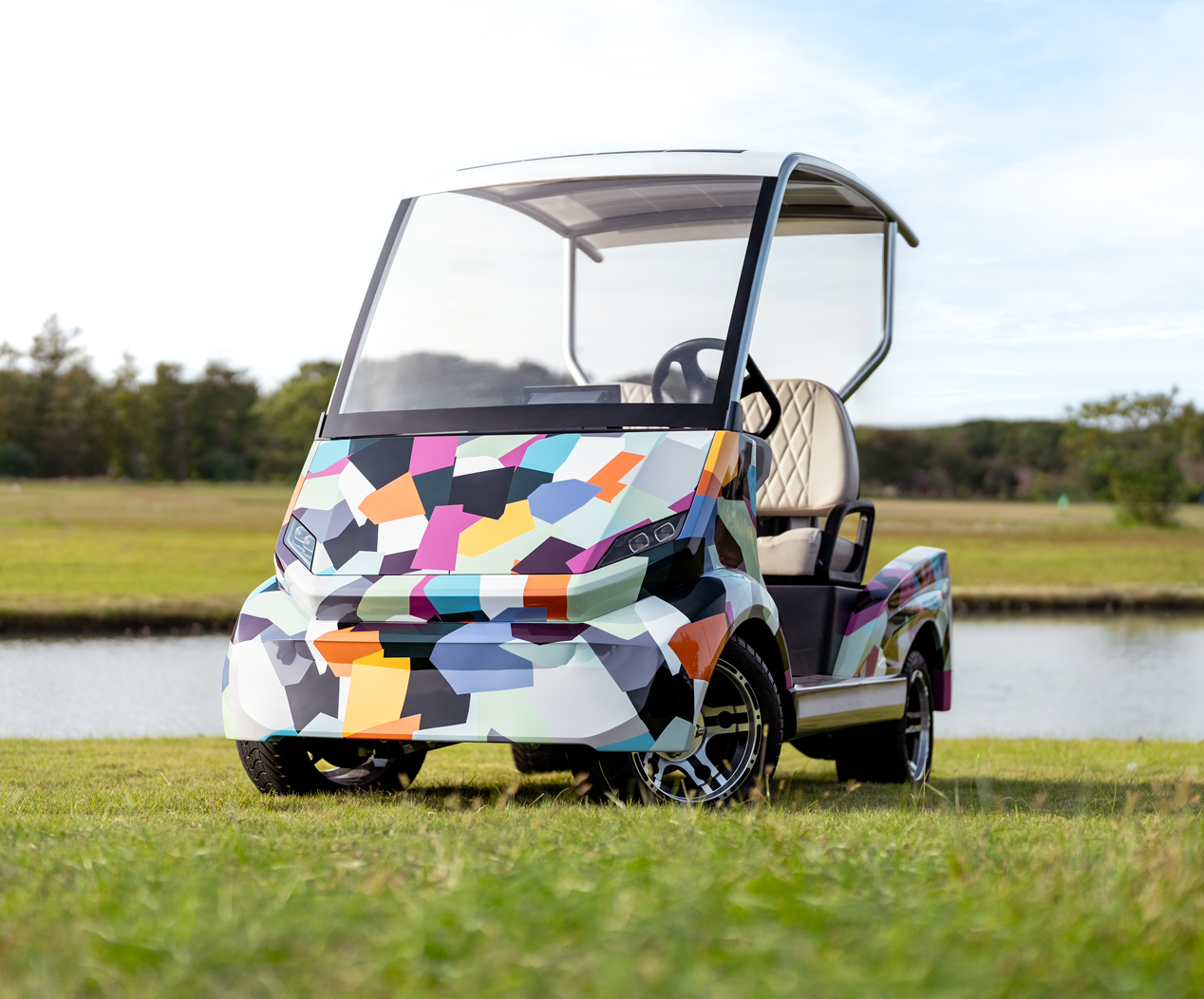

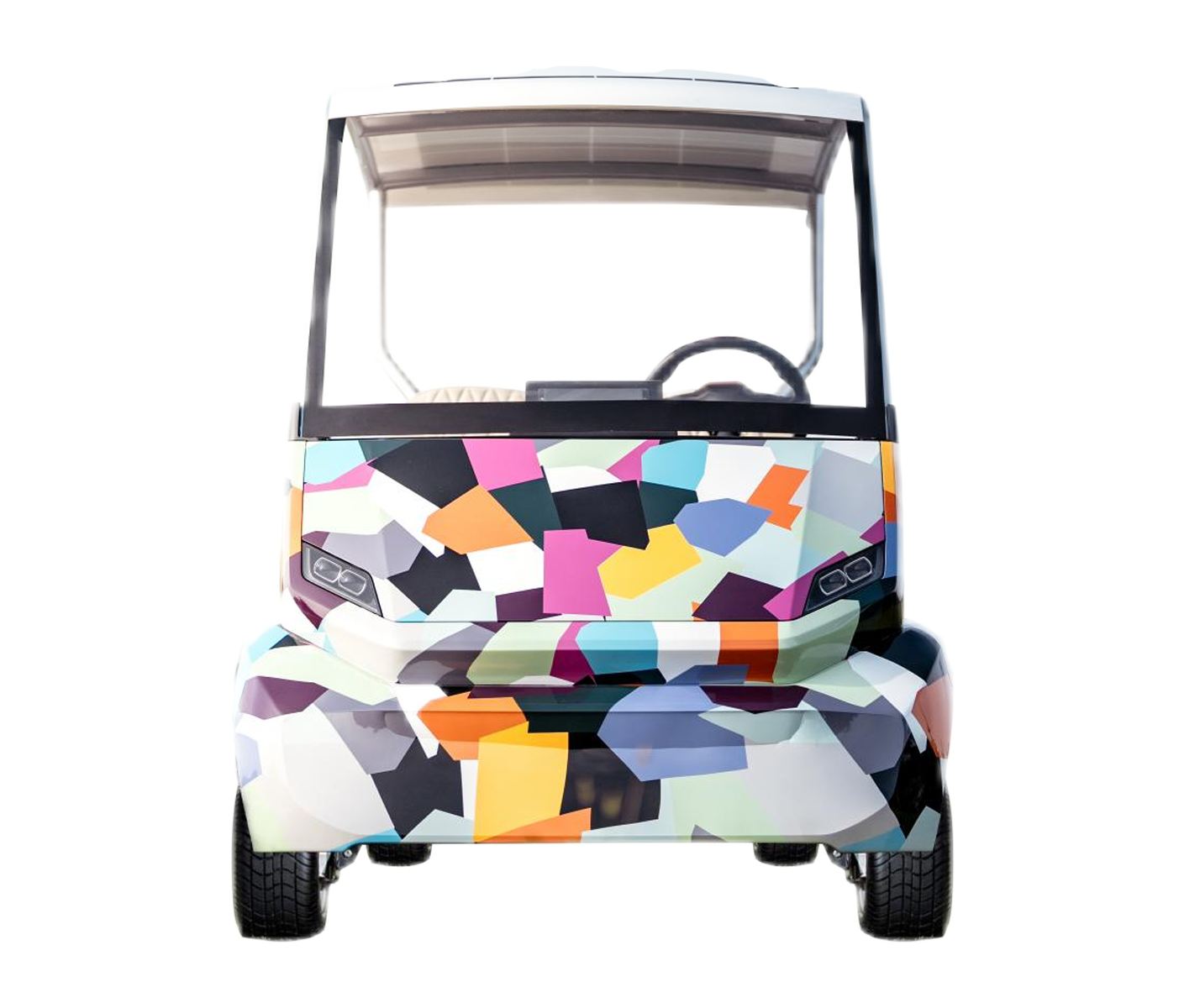

INNOVATIVEDESIGN OF A SUSTAINABLE GOLF CART
PRICE FROM
N/A
Passenger capacity
2
Max. speed
30 KMH
Net weight
450kgs
INTRODUCTION
This golf cart prioritizes environmental sustainability andinnovation, featuring an all-aluminum chassis and aphotovoltaic roof that create a fully self-sufficient energysystem. The automotive-grade design and electronic powersteering ensure an exceptional driving experience, while theintegrated battery in the chassis lowers the center of gravity,enhancing safety. The unique interchangeable shell designnot only adds to the cart’s versatility but also extends itslifespan. Built with recyclable materials, this cart offers golfenthusiasts a sustainable travel option.
The Future Design Pioneer of Golf Carts

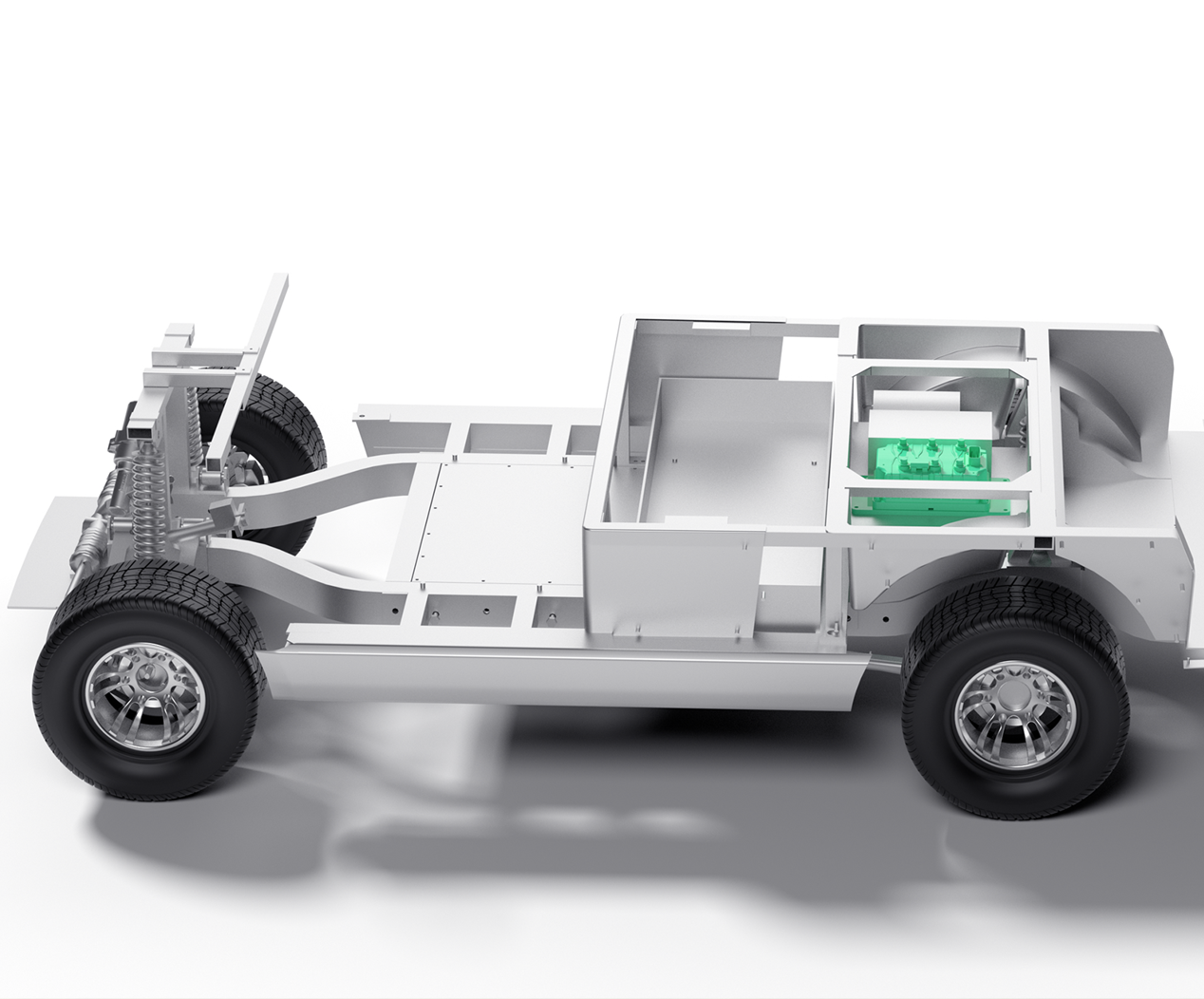

The overall design philosophy embodies a minimalist style, inspired by the unique topography of golf coursesintegrating elements of nature, simplicity, and technology.Compared to an iron chassis, the weight is reduced by30%, the rigidity of the chassis is increased by 25%, and the corrosion resistance is sianificantly improved. At thesame time, due to the lighter weight, the overall vehicle range is increased by 25%.
Premium Double Saddle
Separate seat cushions and a pleated texture deliver the best of style and comfort.

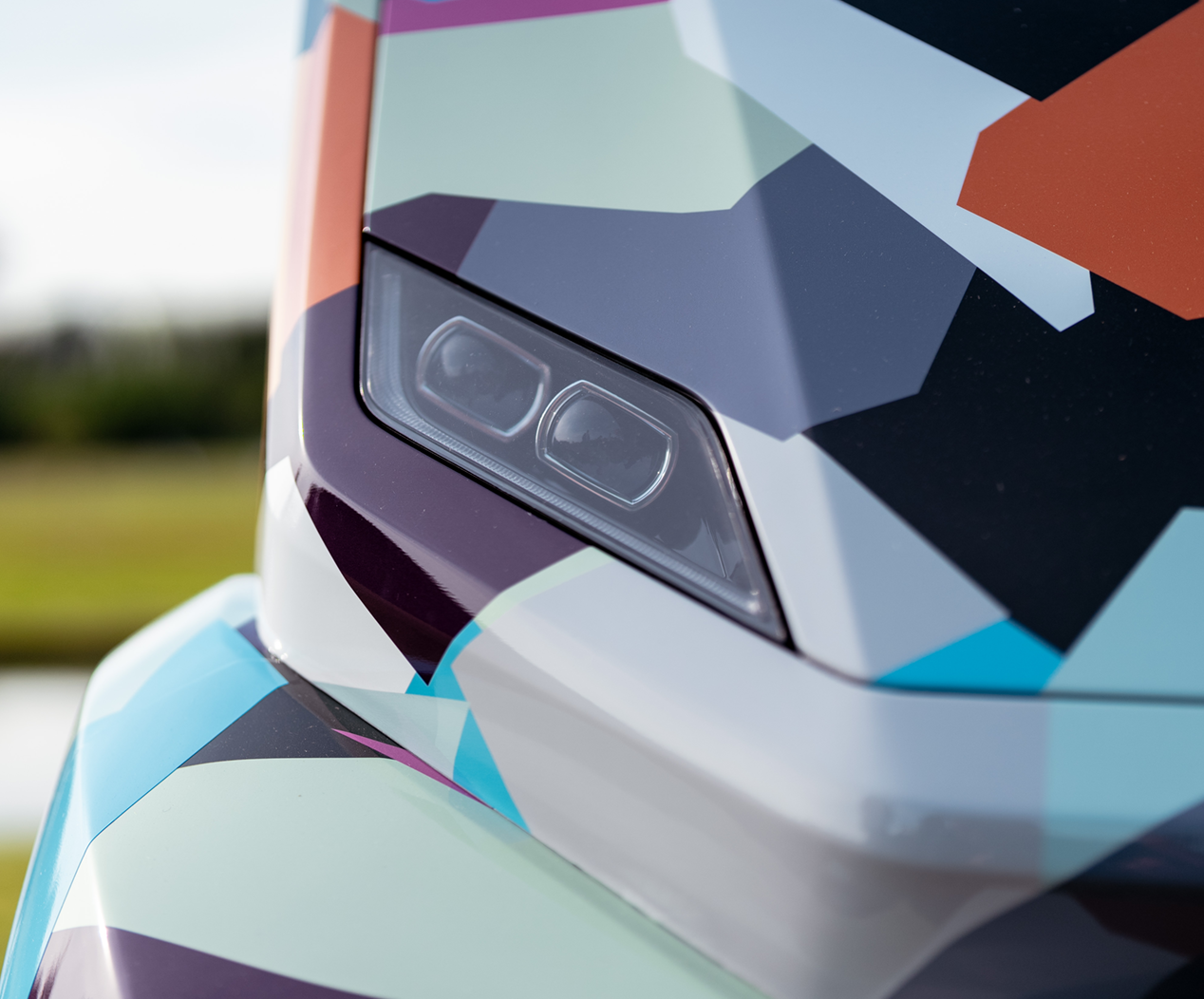

LED Head Light & Fender
Light up your way and stay mud-free with our integrated LED headlight and fenders. Ride with confidence, no matter the conditions.

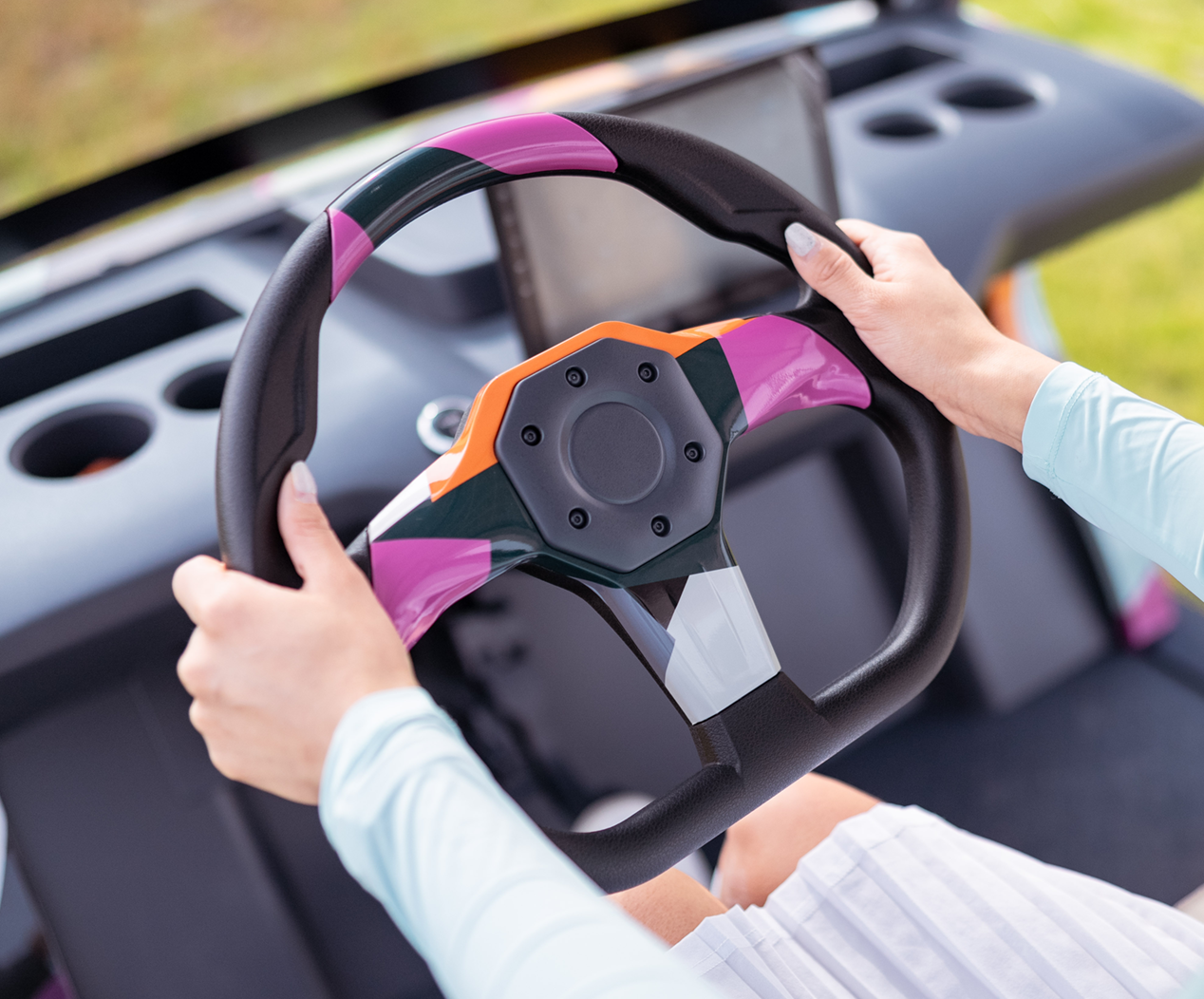

Electronic Power Steering
Delivers a passenger-car-level drivingexperience.

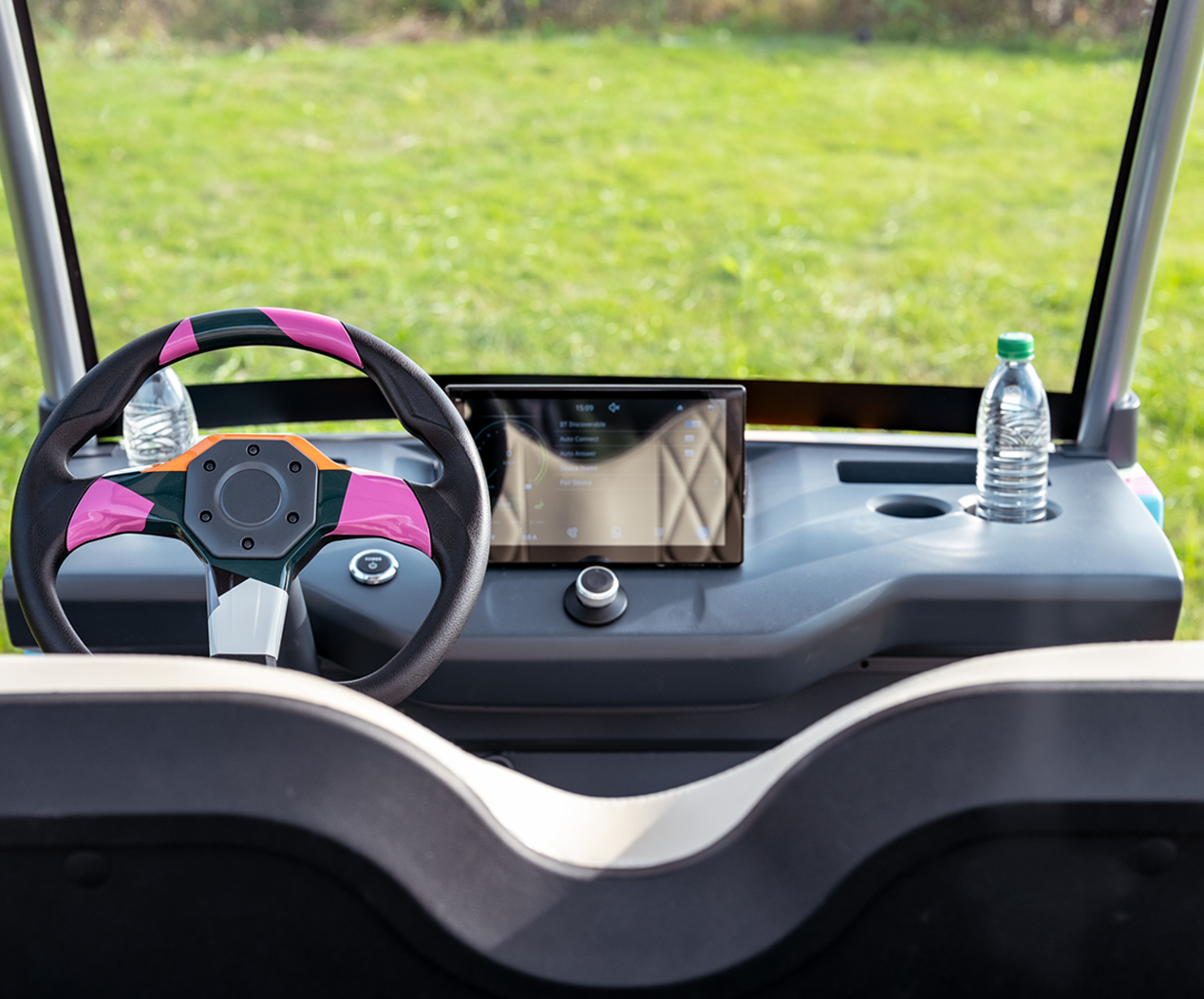

New Dashboard Design
Offers more suitablestorage space for golfers.
TECH SPECS
Key Components
Frame
Alluminium Aloy Frame
Battery
96V/106Ah Lithium Battery/Lade battery cells
Motor
AC, 5KW
Controller
Local Brand
Performance
Passenger capacity
2
Range (loaded) based on flat road at a speed of 30km/h (km)＊
100
Max. speed
30 KMH
Max Gradeability
15%
Net weight
450kgs
Dimensions
Overall dimensions (mm)
2400*1350*1900
Min. ground clearance (mm)
350
Wheelbase (mm)
1660
Front wheel tread (mm)
900
Tire
23X10.5-12 Tubeless
Rear wheel tread (mm)
1000
Body
Body
PP plastic front body + PP plastic rear body PP injection molding front and rear cover, automotive color baking process, paint surface added UV components
Roof
Engineering hard plastic
Steering wheel
Carbon Fiber
Windshield
Single piece windshield
Roof support
Aluminum bracket
Seat belt
2 point seat belt
Roof support
Aluminum bracket
Large Seats:
1) backrest and cushion: Foamed cushion + formed vinyl(artificial leather )
2) armrest: Plastic, black texture finish
3) plastic seat bottom
Floor
skidproof rubber
Dashboard
Rotary switch
Cup Holder
4 plastic
Side trim
Plastic
Electric System
Lighting system and horn
2 headlights, 2 front turn signals, front LED lights, 2 LED taillights (each taillight consists of 1 brake light and 1 turn signal), horn.
Reversing alarm
S
Bluetooth audio system
S
LED screen
10' LED touch screen, MP3, radio, SD card, 2pcs speakers, CarPlay
Charger
Smart handheld charger(GB;US;EU)
Steering and Suspension
Steering system
Self-adjusting rack and pinion
Brake system
Four-wheel disc brake + electromagnetic parking brake
Suspension System
MacPherson strut independent suspension
Standard Body Color (customized color is available, but extra cost should be paid)
Charger
Smart handheld charger(GB;US;EU)
Standard Body Color (customized color is available, but extra cost should be paid)
Pure Black
Pure White
Grey
Blue
Red
Ocean Blue
